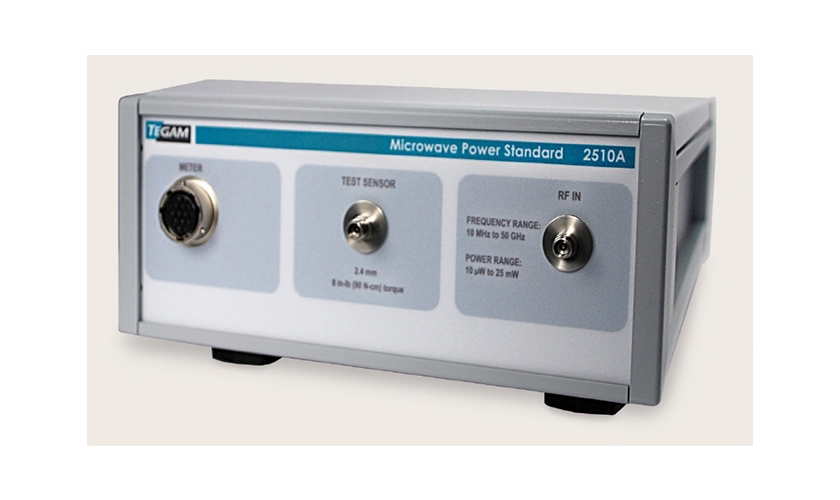

TEGAM 2510A 온도 제어 동축 RF 피드스루 RF 전력 전송 표준은 10MHz~50GHz 주파수 범위에서 마이크로파 전력을 정밀하게 측정할 수 있습니다. 이 장치는 내구성이 뛰어나고 정확도가 높으며 시간과 온도에 안정적입니다. 정확한 RF 전력 측정이 필요한 모든 곳에서 표준으로 사용하기에 이상적입니다. 장치에는 A2LA 인증 ISO 17025 NIST 추적 가능한 교정 데이터가 제공됩니다. 이 모델은 직접 판독 서미스터 전력계인 1830A 와 함께 사용하도록 설계되었습니다.
기술 사양
General Specifications
| Frequency Range | 10 MHz to 50 GHz |
| Max Power | 25 mW (+14 dBm) |
| RF Impedance | 50 Ohms nominal |
| Power Linearity | <0.1% from 1 to 10 mW |
| Dynamic Range | -20 dBm to +14 dBm typical (Depends on noise floor and resolution of DC instruments) |
| Calibration Factor Drift | <0.5% per year |
| Individual Calibration factors are supplied standard at the following frequencies. Inquire about additional points. | 10 to 100 MHz in 10 MHz steps
100 MHz to 2 GHz in 50 MHz steps
2 GHz to 4 GHz in 100 MHz steps
4 to 12.4 GHz in 200 MHz steps
12.75 to 18 GHz in 250 MHz steps |
| Thermistor DC Bias Power | 40 mW (nominal) |
| Thermistor Resistance at Bias | 200 Ohms (set by balancer) |
| Temperature: Operating Storage | +15° to +30° C (+59° to +86° F)
-55° to +75° C (-67° to +167° F) |
Individual Model Specifications-Model 2510A
| Frequency Range | 10 MHz to 50 GHz |
| Typical Equivalent Source Match |Γ|(V/V) | 10 MHz to 100 MHz: 0.01
100 MHz to 2 GHz: 0.02
2 GHz to 12.4 GHz: 0.04
12.4 GHz to 18 GHz: 0.06
18 GHz to 26.5 GHz: 0.10
26.5 GHz to 40 GHz: 0.15
40 GHz to 50 GHz: 0.25 |
| Loss from Input Port to DUT Port | 11 dB (typical) |
| Calibration Factor Accuracy (typical) | +/-1.0% from 0.01 to 0.04 GHz
+/-1.25% from 0.05 to 4.0 GHz
+/-1.5% from 4.20 to 12.0 GHz
+/-2.2% from 12.2 to 17.5 GHz
+/-2.5% from 17.75 to 26.5 GHz
+/-3.0% from 27.0 to 44.0 GHz
+/-4.0% from 45.0 to 50.0 GHz |
| Connectors | APC 2.4 mm Female |
| Weight | 2.9 kg (6.3 lb) |
| Physical Dimensions: | Height 10.5 cm (4.1 in)
Width 21.7 cm (8.5 in)
Depth 33.8 cm (13.3 in) |
